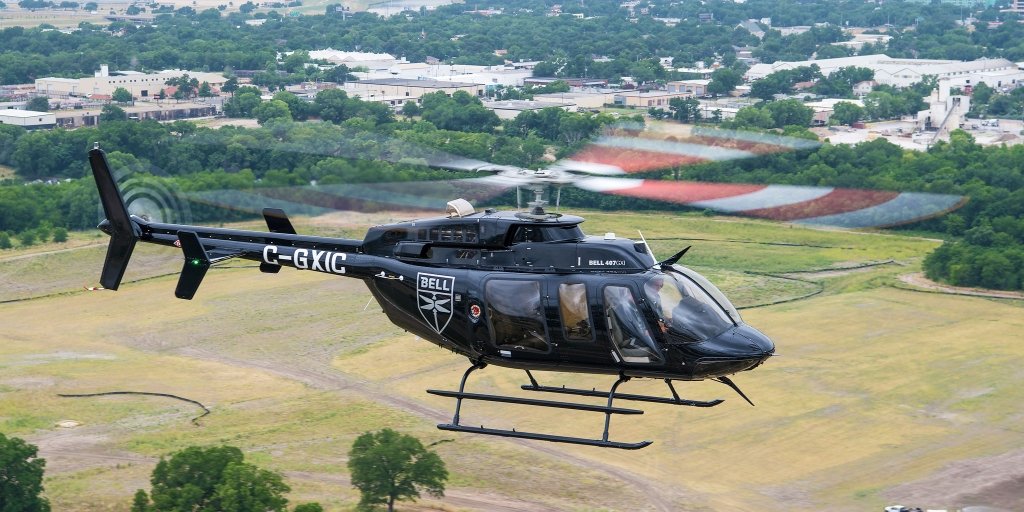

Bell 407GXi
Bell Textron Inc, a subsidiary of Textron Inc (NYSE: TXT), has long been a leader in the aviation industry, known for producing versatile and reliable helicopters that serve a variety of sectors, including military, commercial, and public safety. The Bell 407GXi is known for its exceptional performance, advanced avionics, and versatility, making it a popular choice among law enforcement and emergency response agencies worldwide. With its powerful engine, sophisticated flight deck, and customisable cabin, the aircraft is designed to meet the demanding needs of public safety operations, including search and rescue, surveillance, and medical evacuation.
Recently, Bell announced the delivery of two Bell 407GXis to the Louisiana State Police Department at APSCON 2024 in Houston, Texas. This delivery expands the department’s Air Support Unit fleet to nine Bell aircraft.
Cabin Experience
The aircraft offers a spacious and flexible cabin that can be configured to support a wide range of missions. With seating for up to seven occupants, including the pilot, the cabin is designed to ensure comfort and efficiency during long flights. The interior can be quickly reconfigured to accommodate different mission requirements, such as installing medical equipment for emergency medical services (EMS) or creating additional space for search and rescue operations.
The helicopter’s large windows provide exceptional visibility, enhancing situational awareness for both pilots and passengers. This is particularly important during missions that require precise navigation and observation, such as law enforcement surveillance or search and rescue operations in difficult terrain. It is also equipped with advanced noise reduction technology, which minimises cabin noise levels, contributing to a more comfortable and less fatiguing experience for the crew.
The cabin’s flexibility is further enhanced by the helicopter’s flat floor design, which allows for easy reconfiguration and the installation of mission-specific equipment. Whether the mission requires transporting personnel, evacuating injured individuals, or conducting aerial surveys, the cabin can be adapted to meet the specific needs of the operation.
Performance
The aircraft is engineered to deliver outstanding performance in a variety of operational environments. Its combination of speed, range, and manoeuvrability makes it an ideal platform for public safety missions. The helicopter is powered by the Rolls-Royce 250-C47E/4 engine, which produces 862 shaft horsepower, providing the helicopter with the power needed to perform in demanding situations.
With a maximum cruise speed of 133 knots (246 km/h), the aircraft can quickly respond to emergencies, making it a valuable asset for law enforcement agencies and emergency response teams. The helicopter’s maximum range of 337 nautical miles (624 kilometres) ensures that it can cover large areas without the need for frequent refuelling, which is crucial during extended missions.
The aircraft’s high hover ceiling, both in and out of ground effect, allows it to operate effectively in challenging environments, such as mountainous terrain or urban areas with limited landing zones. This capability is essential for missions that require precise positioning, such as hoisting operations during search and rescue missions or landing in confined spaces for medical evacuations.
The helicopter’s agility and stability are further enhanced by its advanced rotor system, which provides smooth and responsive handling. This is particularly important during low-level flight operations, where precision and control are critical.
Technology (Engine & Avionics)
At the heart of the helicopter’s capabilities is the Rolls-Royce 250-C47E/4 engine, which not only delivers powerful performance but also offers improved fuel efficiency and lower operating costs. This engine is known for its reliability and durability, making it a popular choice for helicopters used in demanding operational environments.
One of the standout features of the aircraft is its Garmin G1000H™ NXi Flight Deck. This advanced avionics suite provides pilots with critical flight information through high-resolution displays, which enhance situational awareness and reduce pilot workload. The G1000H™ NXi includes features such as synthetic vision, which provides a 3D representation of terrain and obstacles, and a traffic collision avoidance system, which helps prevent mid-air collisions.
The avionics suite also includes a fully integrated autopilot system, which further reduces pilot workload by automating key flight tasks. This system allows the pilot to focus on mission-specific tasks, such as surveillance or search and rescue operations, while maintaining precise control of the aircraft. The G1000H™ NXi’s intuitive interface and easy-to-read displays ensure that pilots can access critical information at a glance, improving overall operational efficiency.
In addition to its advanced avionics, the aircraft is equipped with modern communication systems, including ADS-B Out and In, which provide real-time position information to air traffic control and other aircraft. This capability enhances airspace safety and situational awareness, particularly in congested or complex airspace.
The helicopter’s avionics are designed to support a wide range of mission profiles, making it a versatile platform for public safety agencies. Whether operating in day or night conditions, in good weather or bad, its technology ensures that pilots have the tools they need to perform their missions safely and effectively.
Specifications
| Category | Specification | Details |
|---|---|---|
| Dimensions | Length | 41 ft 8 in (12.70 m) |
| Height | 11 ft 8 in (3.56 m) | |
| Main Rotor Diameter | 35 ft (10.67 m) | |
| Cabin Interior Volume | 85 cu ft (2.41 m³) | |
| Maximum Occupants | 7 | |
| Weights | Maximum Gross Weight | 5,250 lb (2,381 kg) |
| Empty Weight | 2,694 lb (1,222 kg) | |
| Useful Load | 2,556 lb (1,159 kg) | |
| Performance | Maximum Cruise Speed | 133 kt (246 km/h) |
| Maximum Range | 337 nm (624 km) | |
| Service Ceiling | 18,940 ft (5,774 m) | |
| Maximum Climb Rate | 1,350 fpm (411 mpm) | |
| Hover Ceiling IGE | 11,800 ft (3,597 m) | |
| Hover Ceiling OGE | 10,000 ft (3,048 m) | |
| Powerplant | Manufacturer | Rolls-Royce |
| Model | 250-C47E/4 | |
| Power Output | 862 shp (644 kW) |
Takeaways
As public safety demands evolve, the Bell 407GXi is well-equipped to handle the challenges of modern missions, providing agencies with the tools they need to protect and serve their communities effectively.
Whether it’s responding to emergencies, conducting aerial surveillance, or performing life-saving medical evacuations, the Bell 407GXi delivers the performance, reliability, and safety that public safety agencies require. As the public authorities integrate these new helicopters into their operations, they can be confident that they are equipped with one of the most capable and versatile aircraft available today.
