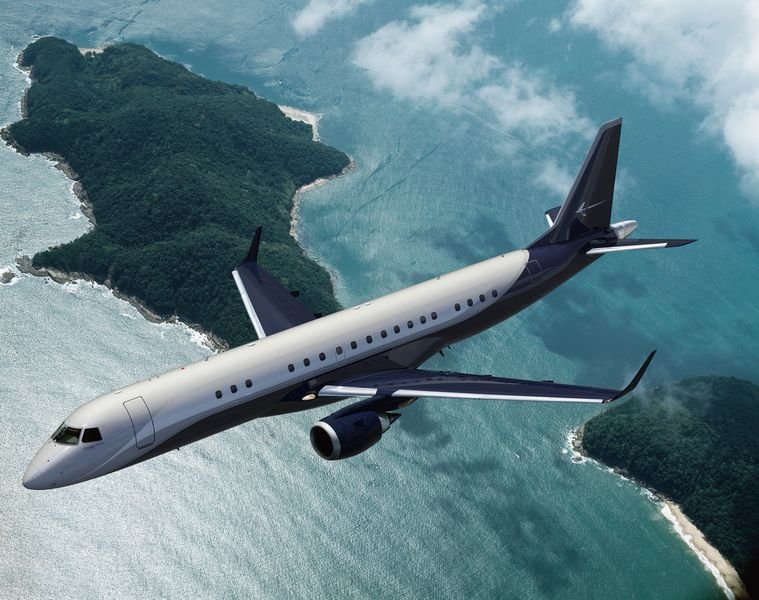

Embraer Lineage 1000E
The Embraer Lineage 1000E stands out by blending airliner heritage with ultimate luxury and long-range capability. Based on the successful E190 commercial platform, the aircraft entered service in 2013 as an upgraded iteration of the original Lineage 1000. As of 2021, approximately 30 units were in operation globally. With a maximum range of 8,519 kilometres (4,600 nautical miles), it effortlessly connects city pairs such as London to Dubai, Beijing to Mumbai, or Los Angeles to Honolulu.
The aircraft is designed for heads of state, ultra-high-net-worth individuals, and discerning charter operators. With advanced aerodynamics, fly-by-wire controls, and robust engineering drawn from Embraer’s airliner experience, it offers a unique balance of performance, comfort, spaciousness, high reliability and operational flexibility.
Embraer Lineage 1000E: Cabin Experience
Featuring one of the most voluminous and customisable cabins in the private aviation market, the aircraft’s expansive interior spans 25.7 metres (84 feet 4 inches) in length, with a width of 2.67 metres (8 feet 9 inches) and a height of 2.00 metres (6 feet 7 inches). With five distinct cabin zones, it can be configured into lounges, dining areas, conference rooms, and private bedrooms, complete with a queen-size bed, en-suite bathrooms and even optional stand-up showers.
The aircraft comfortably accommodates 13 to 19 passengers in VIP configurations, with full-flat seating, state-of-the-art inflight entertainment, and intuitive touch-control lighting and climate systems. Oversized windows ensure ample natural light, while a low cabin altitude of 7,000 feet at cruise minimises passenger fatigue during long-haul flights.
Apart from a fully equipped galley capable of gourmet meal preparation, and multiple lavatories, its walk-in baggage compartment offers 443 cubic feet (12.54 cubic meters) of storage, accessible during flight.
Embraer Lineage 1000E: Technology (Engine and Avionics)
Propelled by two General Electric CF34-10E7-B high-bypass turbofan engines, each producing 86.31 kN (19,000 lbf) of thrust, the aircraft delivers strong climb performance and dependable long-range efficiency. Designed for low fuel burn and reduced noise, the engines support global operations including extended overwater flights.
One of the outstanding features of Lineage 1000E is its advanced Honeywell Primus Epic avionics suite, incorporating five high-resolution LCD displays, graphical flight planning, dual flight management systems, synthetic vision, and auto-throttle functionality, enhancing situational awareness and safety.. The system supports RNP 0.3, WAAS/LPV approaches, and CAT II autoland capability, leading to global navigation precision and operational ease. Integrated fly-by-wire controls contribute to a smoother ride and heightened safety.
Embraer Lineage 1000E: Performance
With a maximum cruise speed of Mach 0.82 (871 km/h), the aircraft achieves intercontinental missions with minimal stopovers. It can take off from runways as short as 1,971 metres (6,466 feet) at maximum take-off weight and reach a service ceiling of 12,500 metres (41,000 feet), cruising above most commercial traffic and weather systems.
The aircraft’s aerodynamic efficiency, robust airframe, and airliner-grade systems ensure dispatch reliability and support high utilisation rates. Operators benefit from lower direct operating costs compared to traditional purpose-built business jets in the ultra-large category, without compromising on cabin size or performance.
With an average operating cost of approximately $5,827 per hour , the Lineage 1000E offers a cost-effective solution in the ultra-large jet category. Its ability to operate from shorter runways and airports with noise restrictions, such as Aspen, Colorado, adds to its versatility . Owners benefit from Embraer’s comprehensive support network and the aircraft’s proven reliability, derived from its commercial aviation heritage.
Embraer Lineage 1000E: Specifications
| Category | Metric | Imperial | Notes |
| Dimensions | |||
| Length | 36.24 m | 118 ft 11 in | Overall fuselage length |
| Wingspan | 28.72 m | 94 ft 2 in | With winglets |
| Height | 10.57 m | 34 ft 8 in | |
| Cabin | |||
| Cabin Zones | 5 | 5 | Configurable layout |
| Length | 25.7 m | 84 ft 4 in | From cockpit divider to aft lavatory |
| Width | 2.67 m | 8 ft 9 in | At floor level |
| Height | 2.00 m | 6 ft 7 in | Full stand-up headroom |
| Seating Capacity | 13–19 passengers | 13–19 passengers | VIP configuration |
| Baggage | |||
| Total Capacity | 9.14 m³ | 323 ft³ | Pressurised, in-flight accessible |
| Performance | |||
| Max Cruise Speed | 871 km/h | Mach 0.82 | Typical high-speed cruise |
| Long Range Cruise | 850 km/h | 459 knots | Economical settings |
| Range (4 pax) | 8,519 km | 4,600 NM | NBAA IFR reserves |
| Service Ceiling | 12,500 m | 41,000 ft | |
| Take-off Distance | 1,971 m | 6,466 ft | SL, ISA, MTOW |
| Landing Distance | 823 m | 2,700 ft | SL, MLW |
| Weights | |||
| Max Take-off Weight | 54,500 kg | 120,151 lb | |
| Max Landing Weight | 47,800 kg | 105,380 lb | |
| Max Payload | 6,400 kg | 14,110 lb | |
| Fuel Capacity | 20,700 kg | 45,636 lb | |
| Powerplant | |||
| Engines | 2 × GE CF34-10E7-B | 2 × GE CF34-10E7-B | High-bypass turbofan |
| Thrust per Engine | 86.31 kN | 19,000 lbf |
Key Takeaways
The aircraft elevates business aviation by offering a wide-body cabin experience in a proven airliner platform with five-zone layout, in-flight accessible luggage hold, ultra-quiet operation, and long-range performance. It stands out in the ultra-large business jet category with a distinct suitability for heads of state, elite entrepreneurs, and charter firms, seeking the spaciousness of an airliner with the flexibility and exclusivity of a private business jet.
Its fly-by-wire systems, intuitive avionics, and reliable powerplant ensure a safe, smooth journey across continents. With fewer maintenance demands and lower operating costs than many traditional ultra-large jets, the Lineage 1000E delivers enduring value and luxurious capability in a class of its own. Its airline-derived platform ensures robust performance and reliability, while the customisable interior caters to the most discerning travellers. In comparison to competitors like the Gulfstream G650ER and Bombardier Global 6000, the Lineage 1000E offers a more spacious cabin, thanks to its airliner origins. While the G650ER boasts a longer range, the Lineage 1000E provides superior cabin volume and customisation options at a more competitive operating costs and the ability to access challenging airports. Its ability to combine luxury, space, and operational flexibility makes it a compelling choice for discerning travellers. While production ceased in 2020, this aircraft remains a standout choice in the ultra-large jet market.
